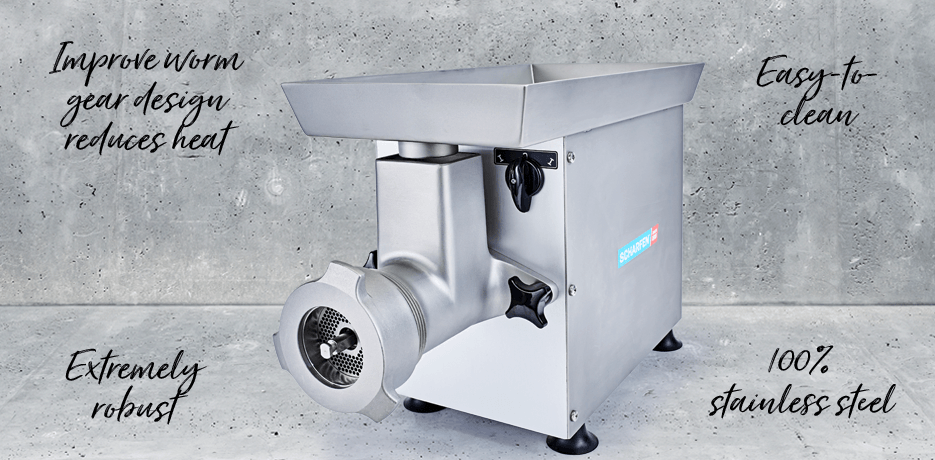

X 70

Small mincer with large capacity

Features

  • High meat quality due to reduced heat during mincing process
  • High capacity with small counter space
  • Capacity: 300-400 kg/h
  • Maintenance-free gear
Overall Dimension (l x w x h) 520 x 223 x 360 mm
Counter Space Required (l x w) 310 x 223 mm
Sound Level <70 dB (A)
Weight 27 kg
Voltage 3-phase or 1-phase, voltage and cycles as required
Power Requirement 1,1 kW
Hygiene All materials in contact with food products are 100% stainless steel, chicane are easily removable from the drum. Drum cleaning takes only 5 minutes because there are no edges or bolts inside.
Cutting System Dual cut system Unger R (1 knife, 1 hole plate 3mm) or Enterprise No. 12 (1 knife, 1 hole plate 3mm), other plate sizes or cutting sets arae available upon request
Capacity about 5 kg per minute
Feed Hole round, diameter 46 mm
Feed Pan (l x w h) 440 x 240 x 50 mm, capacity about 7 kg
Gear Maintenance-free gear is engineered with accuracy and precision operating quietly in a sealed oil bath

Customization Options

X 70 G

Larger feed pan with 15kg capacity and 6 kg/min production
